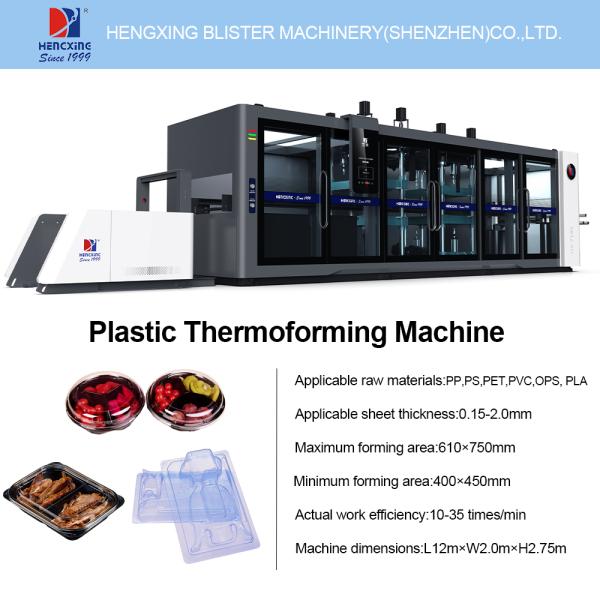

Machine Introduction:
The positive and negative pressure multi-station forming machine is an innovative product developed by our company with the latest German technology for the packaging, food, electronics, and other industries. The machine has three fully automatic functions of heating, forming, cutting, stacking, and counting: heating, forming, cutting, stacking, and counting. This machine can adapt to various materials such as APET, PP, PC, PS, PVC, BOPS, PLA, corn starch sheet, etc., and can produce vacuum-formed packaging products for bowls, covers, boxes, plates, electronic trays, pharmaceuticals, industries, etc. It is widely used, has strong universality, fast positive and negative pressure forming machine speed, low energy consumption, low noise, high safety and hygiene level, and easy operation and maintenance. It is highly trusted by customers.
Machine features:
1. Loading area
The feeding adopts a 2.2KW high-power motor for feeding, with a maximum roll diameter of 700mm and a maximum capacity of 500KG/support. The feeding adopts rubber roller transmission and is equipped with two seamless steel pipe material rods for replacing the sheets. A silicone oil spraying device is added to the feeding area for easy demolding.
2. Heating area
(1) The electric furnace adopts a specific aluminum furnace design, which does not deform at high temperatures. The heating brick electric furnace is equipped with insulation cotton on the back, making the heating wire more durable.
(2) The heating brick adopts Swedish Cornell heating wire, which has the characteristics of fast heating, good constant temperature effect, and long service life. It has a 5-year ultra-long warranty, and the high-temperature wire adopts 2.5 mm² (some peers use 1.5 mm²) to ensure that the wire is durable and not easily aged.
3. Forming area:
(1) Forming length 610mm, width 750mm, three-stage upper and lower furnace heating, forming height up to 120mm;
(2) Adopting the original imported positive pressure valve from Japan, with a high flow rate and fast positive pressure speed, the product is easier to form in place.
(3) Both the upper and lower molds use high-power servo motors to ensure that the machine can operate continuously for 24 hours.
4. Cutting area
(1) The cutting size is 630 × 750mm, and the cutting upper mold is equipped with a heating knife electric control system.
(2) Data saving of cutting position of knife mold: adjust the cutting depth of the knife mold with numbers for more accurate adjustment without damaging the knife. The knife mold position data can be saved. During the second production, the first production knife mold data can be directly called, and the knife mold can be directly installed for production, reducing the waste of products caused by knife adjustment and improving production efficiency.
Machine parameters:
